Question 1

Who is the top earthing material exporter from India?

Accepted Answer

There's no single official leader here either. Earthing manufacture spreads across Kolkata/Howrah, Gujarat and southern India, and self-declared rankings online mean little. What actually separates suppliers is direct-factory supply, IS 3043 or IEC 62561 test reports, and verified copper-coating thickness on the rod itself. Vajra International manufactures earthing plates, rods, pipes and strip in Howrah and exports FOB/CIF to 30+ countries.

Question 2

What is the HS code for earthing electrodes and rods from India?

Accepted Answer

Copper-bonded earth rods typically export under HS 74091100 (copper bars, rods, profiles) or 74081900 (copper wire); GI earthing pipes and plates fall under 73269099 (other articles of iron or steel). Get the exact subheading confirmed by your customs broker before shipping. For buyers in the UAE, these codes clear duty-free under India–UAE CEPA once the Certificate of Origin is in hand.

Question 3

What is the GST rate on earthing material in India?

Accepted Answer

Earthing rods, plates, pipes and strip sit under HSN 7326 or 7409/7408 and carry 18% GST within India. That doesn't touch an export order. Shipments go out under an LUT with no IGST charged, or with IGST paid and then refunded to us. What lands on your invoice is the FOB or CIF price plus whatever import duty your own country applies.

Question 4

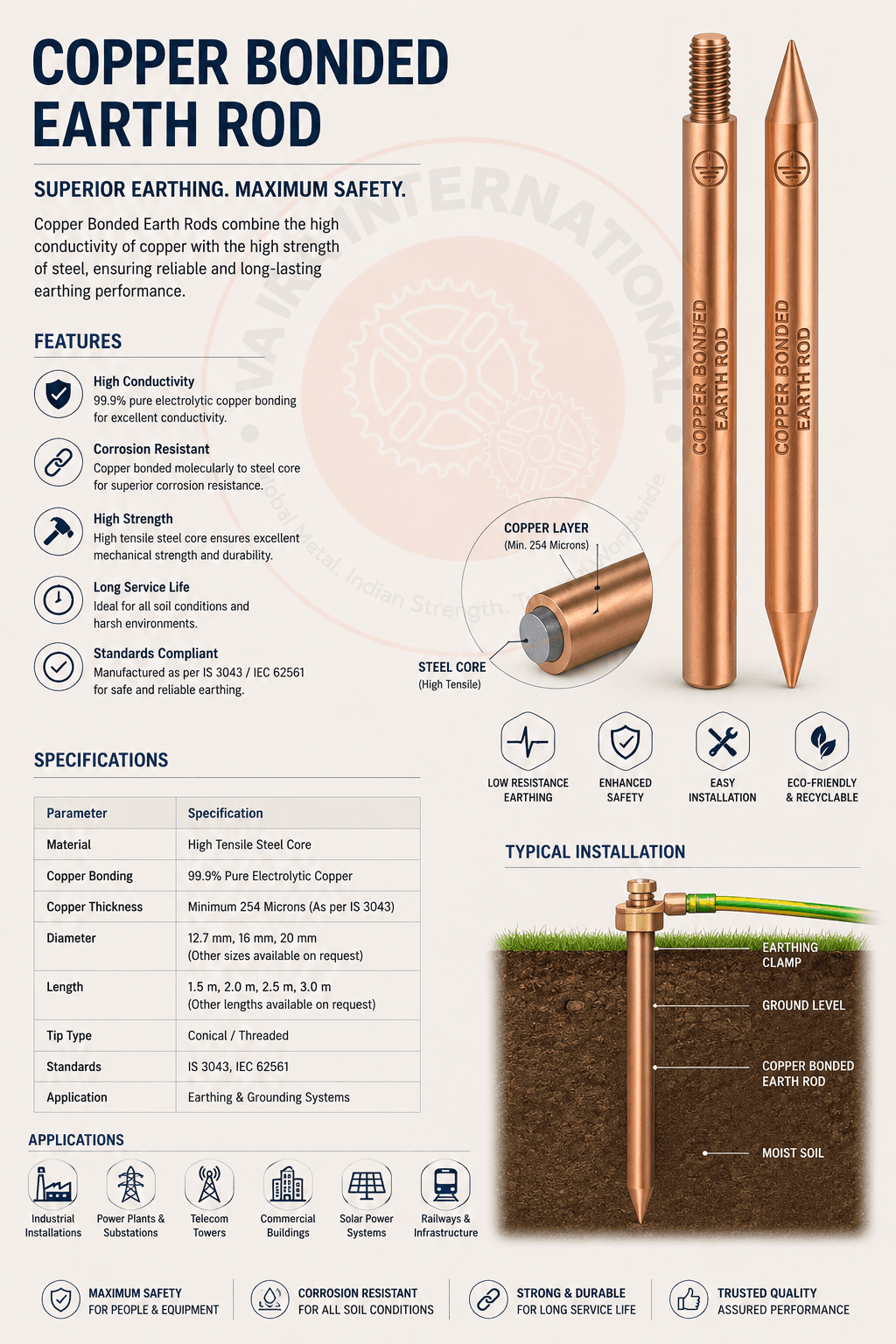

Copper-bonded, GI, or pure copper earth rod: which should I specify?

Accepted Answer

Copper-bonded rod, a steel core with roughly 250 µm of electrodeposited copper, is the international default. It gives steel's tensile strength and copper's conductivity for a fraction of solid copper's price. GI pipe electrodes suit high-resistivity soil and IS 3043 Type-A compliance on tighter budgets. Solid copper is reserved for aggressive acidic, high-chloride or high-sulphate soils, where even a thick copper-bonded coating risks galvanic failure at the steel-copper interface.

Question 5

IS 3043 or IEC 62561: which standard should I specify for earthing?

Accepted Answer

IS 3043 is the Indian earthing code. It sets resistance targets (1 ohm for generating stations, 2 ohms for major substations, 10 ohms for domestic) and basic electrode rules. IEC 62561 is the international standard for earthing and lightning-protection components, and it specifies test methods for corrosion, mechanical strength and the copper-bonding thickness itself. For export projects, ask for compliance with both; they complement each other rather than compete.

Question 6

What is the price of copper-bonded earth rods from India?

Accepted Answer

A standard 14.2 mm × 1.5 m copper-bonded rod with 250 µm coating runs roughly USD 3 to 6 per piece FOB India, moving with copper price, coating thickness and order volume. The 17.2 mm × 3.0 m size costs more. GI pipe electrodes come in cheaper still. Use these as budgeting figures and confirm against current copper pricing and your exact specification before locking a number into a project budget.

Question 7

Earthing plate or earthing rod: which is right for my project?

Accepted Answer

Rods, whether copper-bonded or GI, are the default for most substations, data centres and industrial plants. They install faster, couple for extra depth, and IS 3043 is largely built around them. Plates earn their place where driving is impractical: rocky ground, confined plant areas, existing concrete. Most substation designs lean on rods as the primary electrode and add plates or strip to bring the overall grid resistance down further.

Question 8

Earthing strip or earthing rod: which is right for my project?

Accepted Answer

They're not really competing options, most IS 3043 designs use both. Rods do the vertical work: driven into the soil and coupled for extra depth, they're the default primary electrode for substations and data centres because they reach moisture at depth with the smallest footprint. Strip does the horizontal work: buried flat, it forms the counterpoise grid or bonding ring that ties multiple rods together and brings the overall grid resistance down, and it's the practical choice where driving isn't: rocky ground, shallow soil over rock, or short bonding runs between equipment. A single rod alone rarely meets a 1 to 2 ohm target in moderate-to-high resistivity soil; a rod-and-strip grid usually does.

Question 9

What copper coating thickness should a copper-bonded earth rod have?

Accepted Answer

250 microns is the standard minimum per IEC 62561-2 (or 254 microns under UL 467) for neutral, low-chloride soil. In acidic soil (pH below 6), high-chloride coastal ground, or sulphate-rich conditions, step up to 450 microns or move to solid copper. Thin coatings fail at imperfections faster than most buyers expect once the soil turns aggressive. Always ask for the DFT (dry film thickness) test report; a verbal assurance isn't proof.

Question 10

What documents come with an earthing material export order?

Accepted Answer

Commercial invoice, packing list, a Mill Test Certificate for the steel core, a copper-coating thickness (DFT) report to IEC 62561-2 or IEEE 837, and a Certificate of Origin for duty relief. Where earthing ties into a lightning-protection system, IEC 62305 compliance documentation is added if the buyer asks for it.

Question 11

Is there a minimum order quantity for earthing rods and electrodes?

Accepted Answer

There's no set minimum on the international side. Earthing material is usually bundled with cable tray, busbar or gratings inside one container, since that spreads freight cost across the whole order. Tell us your destination port and Incoterm and we'll work out the most economical shipment size.

Question 12

What is the lead time for earthing systems from India?

Accepted Answer

Standard rods, plates and strip typically ship in 3 to 5 weeks from order confirmation for a full container; smaller consolidated orders can move faster. Custom lengths, non-standard copper thickness or large chemical-earthing quantities push the schedule out, so flag those needs before you lock in a project date.

Question 13

What finish should I use for earthing material in coastal or desert conditions?

Accepted Answer

Coastal, humid and high-chloride sites should specify copper-bonded rod at 450 microns minimum or solid copper, with stainless steel or copper couplings. Never carbon steel; it creates a galvanic cell at the joint. Desert sites with low chloride but high resistivity soil often do well with GI pipe electrodes and a bentonite backfill compound to bring resistance down.

Question 14

What is backfill compound and do I need it for earthing?

Accepted Answer

Backfill compound, bentonite or a conductive carbon-based mix, gets packed around the electrode to lower the effective soil resistivity and keep it stable across seasons. It matters most in high-resistivity or sandy, rocky soil where the natural ground alone won't reach the target resistance. In low-resistivity, consistently moist soil it's less critical, though it still helps long-term stability.

Question 15

How many earth rods do I need for a substation or data centre?

Accepted Answer

It comes down entirely to soil resistivity and the target resistance you're designing to, often 1 ohm for data centres and generating stations, 2 ohms for major substations, per IS 3043. A single rod in 100 ohm-m soil delivers roughly 25 to 30 ohms on its own, so reaching 1 ohm usually needs a buried counterpoise grid: a perimeter ring of strip with rods spaced along it, sized from an actual soil resistivity survey using the Wenner 4-pin method, not a rule of thumb.

Question 16

What is chemical earthing and when should I specify it?

Accepted Answer

Chemical earthing uses a hollow electrode, usually copper-bonded pipe, filled with a conductive, moisture-retaining compound that holds resistance low through dry or high-resistivity soil across seasons. It costs more than a conventional rod, but it avoids the resistance drift plain rods show in sandy or arid ground. Specify it for critical installations, data centres and telecom towers especially, in dry climates.

Question 17

What size earthing strip should I specify?

Accepted Answer

25×3 mm to 50×6 mm GI or copper strip covers most grid and bonding runs. Use 25×3 mm for equipment bonding and smaller grids, and 50×6 mm for main substation earthing grids and high-fault-current paths. Check the strip size against the fault current and clearance time using the adiabatic formula in IEC 60364-5-54 Annex A rather than picking a size out of habit.

Question 18

Why does the coupling material matter on sectional earth rods?

Accepted Answer

The coupling, where two rod sections join, is the most vulnerable point in the whole installation. A carbon-steel coupling on a copper-bonded rod creates a bimetallic junction that corrodes far faster than the rod body itself, particularly in aggressive soil. Specify stainless steel or solid copper couplings every time, and treat a mild-steel coupling offered "to save cost" as a warning sign, not a bargain.

Question 19

How do I check whether an earthing supplier is a manufacturer or a trader?

Accepted Answer

Find out who actually does the copper-bonding: an in-house electroplating line, or a subcontractor a few steps removed. Ask for a DFT test report and ISO 9001 certificate as samples. Then ask one pointed technical question, the target resistance at your soil resistivity, and notice whether the answer comes from someone who understands soil chemistry or gets bounced back unanswered. A real manufacturer controls the plating process end to end and backs every claim with paperwork.

Question 20

Does Indian earthing material meet Gulf and international project specifications?

Accepted Answer

Yes. Manufacturers worth shortlisting build to IS 3043 and IEC 62561 together, and IEC 62561 in particular is the internationally recognised standard for earthing and LPS components across the Gulf, Africa, Southeast Asia and the UK. Put IEC 62561 in the enquiry for any export project so the copper-coating and mechanical test reports come back in the format your consultant expects to see.

Question 21

What's the difference between lightning-protection earthing and general power-system earthing?

Accepted Answer

Power-system (equipment) earthing carries fault current from electrical faults and is sized to the switchgear's fault level. Lightning-protection earthing carries very high, very short-duration surge current from a strike and needs its own low-impedance path, ideally a dedicated ring or rods bonded to, but distinct from, the main power earth. IEC 62305 governs the LPS-side design; both systems still need equipotential bonding together at one point.

Question 22

Which region of India is best for sourcing earthing material?

Accepted Answer

Kolkata/Howrah has built up real depth in copper-bonding and GI earthing manufacture, with electroplating lines and Kolkata/Haldia port access close together. Going direct to a Howrah factory cuts out the trading-house layer that tends to creep in when earthing material gets bundled through a general hardware exporter instead of a specialist.

Question 23

Is a maintained earth pit or a maintenance-free (chemical) pit better?

Accepted Answer

A conventional maintained pit, rod plus watering pipe and funnel, costs less and is standard for most industrial and substation work, but it needs periodic watering in dry seasons to hold resistance down. A chemical or maintenance-free pit costs more upfront and holds resistance stable without watering at all. It earns that premium at remote sites, telecom towers, or anywhere site visits are infrequent.

Question 24

What test certificates should I expect with an earth rod shipment?

Accepted Answer

A Mill Test Certificate for the steel core, a copper-coating thickness (DFT) certificate per IEC 62561-2 or IEEE 837, and, where specified, an independent third-party test report from SGS, TÜV or Bureau Veritas. Ask for these ahead of shipment. Chasing them down after a site audit flags their absence is a much worse conversation to have.

Question 25

How is earthing different for solar farms compared to a standard substation?

Accepted Answer

Solar farms cover a very large physical area with module racking, inverter stations and a perimeter fence all needing bonding, so the earthing grid is far more extensive: typically a buried perimeter ring with radial connections into each array block, tied to the inverter station earth. Module mounting structures need their own bonding path, distinct from but connected to the main grid, and that detail gets missed constantly when solar EPCs treat earthing as an afterthought.

Question 26

Can I get earthing plates, rods, pipes and strip from one supplier in one shipment?

Accepted Answer

Yes. A manufacturer producing the full earthing range in-house, plates, pipes, copper-bonded and GI rods, strip and wire, can put a complete system into one container with matched documentation, rather than you sourcing each component from a different trader and reconciling certificates from four separate places afterward.

Question 27

Which standard governs earthing plate design and installation in India and abroad?

Accepted Answer

IS 3043 is the Indian code of practice, it defines plate material, minimum dimensions (600×600 mm copper or GI), depth of burial, backfill, watering arrangement and the resistance acceptance target. IEC 62561-2 covers the same component requirements internationally, and BS 7430 is the British equivalent still widely cited in African and GCC project specifications. Our plates are manufactured to IS 3043 with material certificates written to align with IEC 62561-2, so the same shipment satisfies an Indian utility tender and an international EPC's BOQ without re-testing.

Question 28

What resistance value does IS 3043 require, and how is it verified after installation?

Accepted Answer

IS 3043 clause 5.3 sets the target at less than 1 Ω for most industrial and substation earthing systems, measured at the electrode terminal. Verification uses the three-electrode fall-of-potential method with a calibrated earth tester (Megger DET4TC2, Kyoritsu 4105A or equivalent). Measurements should be taken after the backfill has had 7 or more days to consolidate, during the dry season, dry soil gives the worst-case reading, and that is the value that counts. Insurance underwriters and utility distribution companies increasingly require a signed commissioning test certificate before energising a transformer; we include the test form in every pit kit.

Question 29

How do Saudi SEC and UAE DEWA earthing specifications differ from IS 3043?

Accepted Answer

Saudi SEC Distribution Standard SSS-03.01 and UAE DEWA earthing specifications both follow IEC 62561-2 rather than IS 3043. The practical differences are: (1) GCC tenders require bentonite-based ground enhancement compound (GEM) instead of salt-and-charcoal backfill. GEM does not leach into surrounding soil and holds moisture better in desert conditions; (2) Saudi specs call for copper electrodes at all utility connection points, not GI; (3) the Saudi acceptance test requires each electrode to achieve ≤5 Ω before the distribution company will connect. We manufacture to both IS 3043 and IEC 62561-2 from the same facility. A GCC shipment leaves our works with the IEC material certificate, an Arabic-language installation guide and bentonite GEM already packed in the kit.

Question 30

Are post-installation earthing tests mandatory, and at what intervals does IS 3043 require re-testing?

Accepted Answer

Yes, testing is mandatory under IS 3043 clause 6.6 at commissioning, and most industrial occupier and utility licences make it a site maintenance requirement. Typical re-testing intervals: annually for critical industrial (substations, hospitals, data centres, explosive-area buildings) and every five years for general commercial and industrial buildings. IEC 62305-3 requires LPS (lightning protection) earth resistance testing once per year as part of the annual inspection. Many project-specific QA plans go further. Reliance, BHEL and L&T contracts we supply require independent third-party test reports at commissioning. We include the measurement method, pass criteria and report format in every supply.

Question 31

What plate size and depth are typical for an industrial earthing pit?

Accepted Answer

IS 3043 specifies 600×600 mm minimum for copper plates at 3 mm thickness, and 600×600 mm for GI at 6 mm. Burial depth of 3.0–3.5 m in a 600 mm wide brick-lined pit is the working standard. Depth is the primary lever for reducing resistance, going from 2 m to 3.5 m typically halves resistance in layered soils. Salt-and-charcoal backfill (or GEM for export work) reduces seasonal variation. A complete pit kit from us includes the plate, watering pipe and funnel, backfill compound, brass terminal lug, and inspection chamber components in one delivery.
