Earthing Strips & Wire
GI and copper earth conductor strip and stranded wire.
What it is

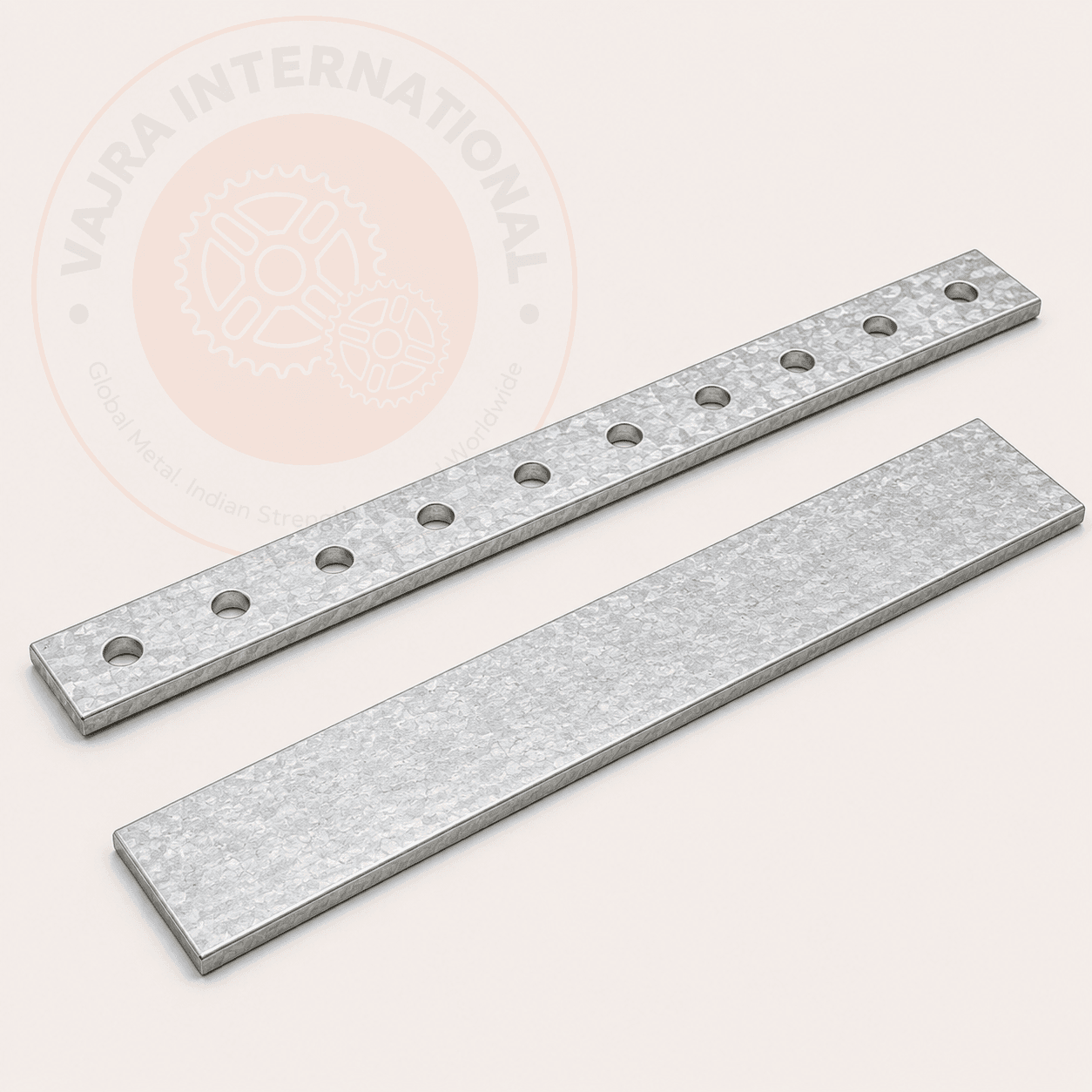

Flat earth strip and stranded earth wire in GI and copper for grid and conductor runs, cut and drilled to project schedules.
Applications
Materials
Finishes

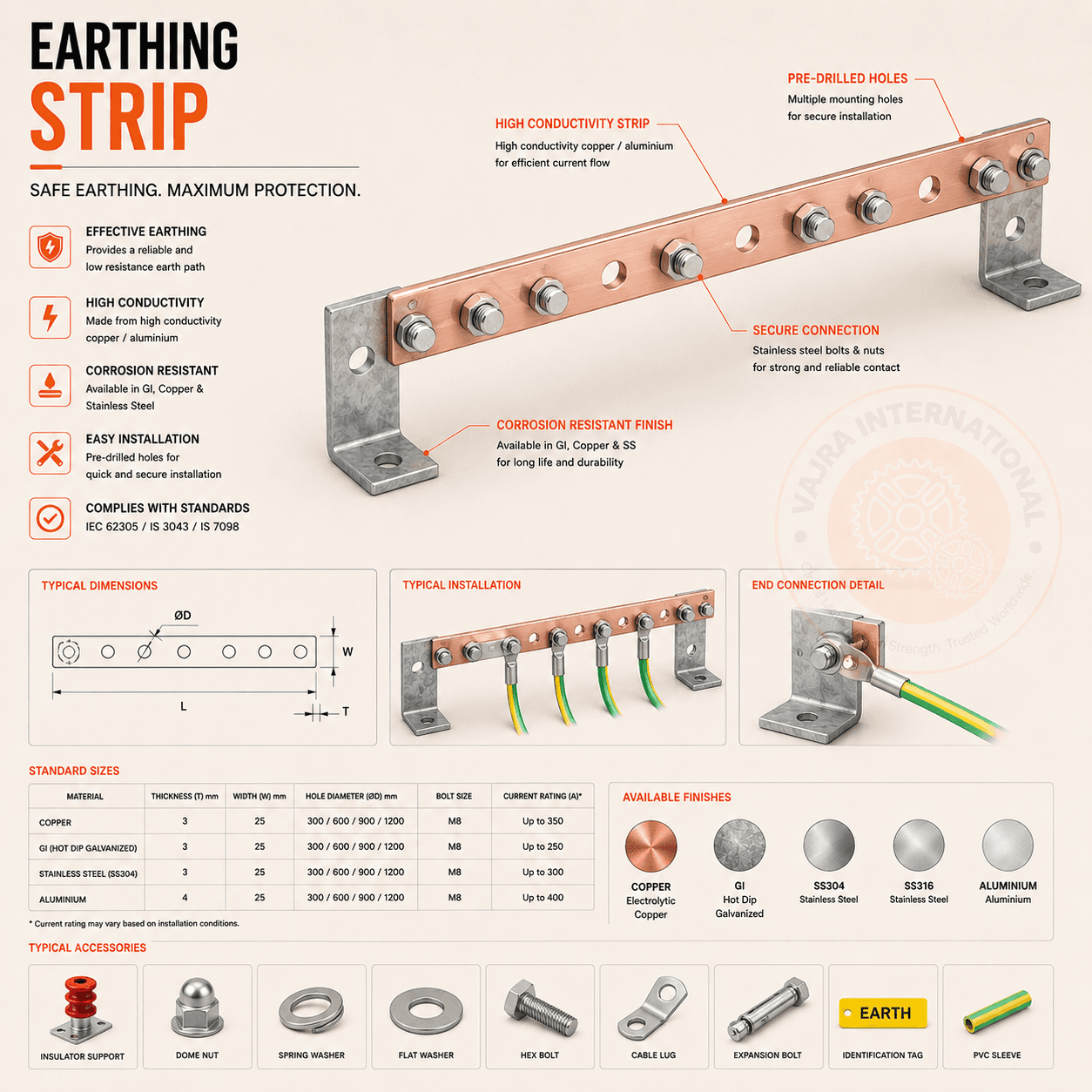

Dimensional & Section Details
Engineering drawings for sizing, cross-sections and installation reference. Click any drawing to enlarge.
Buying earthing strips & wire — answered
Practical answers for procurement, engineering and EPC teams — covering specification, standards, finish, lead time and export logistics.
Flat strip has lower inductance at high frequencies — important for lightning down-conductors and fault-current paths in switchyards. Stranded wire is more flexible and easier to route through cable trays for equipment bonding. Most substations use both: strip for grid loops, wire for equipment tails.
25×3 mm GI or 25×3 mm tinned copper is the working standard for a medium-industry earth grid. For substations and data centres step up to 50×6 mm. The cross-section is set by the prospective fault current and clearing time — IEEE 80 gives the formula. We size on request.
Buried grid strip is always bare — it relies on soil contact to dissipate current. Above-ground equipment-bonding strip can be insulated (PVC sleeve) in green/yellow for code-clear identification, especially in IT rooms and pharma cleanrooms.
Bolted joints with bimetallic washers are easy and inspectable. Exothermic welding (Cadweld, Aldweld) gives a molecular fusion joint with no resistance drift — the gold standard for buried grid joints. Vajra supplies both jointing systems and the moulds for exothermic.
HDG GI strip lasts 20–25 years in average Indian soil (pH 6–8, modest chlorides). In coastal or industrial-effluent soils, life drops to 10–15 years. Copper strip lasts 40+ years in the same soils. Plan for replacement (or upgrade to copper) at the asset's mid-life refurbishment.
Manufacturing & Surface Treatment
All products are manufactured at Vajra's Howrah facility under ISO 9001:2015 quality management. In-house roll-forming, welding, galvanizing and testing — without sub-contractor dependency — ensures consistent dimensional accuracy and surface quality across export orders.
Precision Roll-Forming
CNC roll-forming lines capable of ±0.1 mm dimensional tolerance on MS, GI, SS, and aluminium sections.
Hot-Dip Galvanizing
In-house HDG plant conforming to ASTM A123 / IS 2629. Average coating: 85–140 µm. Pre-treatment: alkaline degreasing → pickling → fluxing.
Welding & Fabrication
MIG, TIG, SAW welding. Coded welders under ASME IX / IS 2825 qualification. Weld inspection by UT / DPT available.
Surface Treatment
Hot-dip galvanizing · Pre-galvanized GI · Powder coating (Tribo gun, 60–80 µm DFT) · Mill finish · Chromate passivation.
Available Material Grades
Surface Treatment Options
Manufacturing Tolerances
| Length tolerance | ±3 mm on standard lengths |
| Width tolerance | ±1 mm |
| Thickness tolerance | ±0.15 mm (IS 1079) |
| Straightness | ≤ 1 mm per 1 m |
| Galvanizing coat | 85 µm min (ASTM A123) |
| Squareness | ≤ 1 mm per 100 mm |
Global Supply & Export Documentation
Earthing Strips & Wire is exported under a documented supply chain — from factory test certification through customs clearance to door delivery. All shipments are packed to sea-freight standards with full export documentation prepared in-house.
Incoterms Available
- FOB Kolkata
- CIF Port of Destination
- CFR
- EXW Howrah Works
- DDP (on request)
Export Documents
- Commercial Invoice & Packing List
- Bill of Lading / Airway Bill
- Certificate of Origin (CoO)
- Inspection Certificate
- Phytosanitary Certificate (where applicable)
- MSDS / Material Safety Data Sheet
- Test Reports & Mill Certificates
Packaging Standards
- Wooden crate — sea-freight grade
- ISPM-15 heat-treated pallets
- Steel-strapped bales for structural sections
- VCI poly wrapping for corrosion protection
- Moisture-absorbing desiccant sachets
Compliance & Standards
Manufactured and tested to:
ISO 9001:2015 quality management system. Third-party inspection available on request (SGS, Bureau Veritas, TÜV).
Lead time: Standard stock items ship within 7–10 working days after order confirmation. Custom fabricated quantities: 15–25 working days. Express production available — contact our export desk.
