Question 1

What does IEC 62561-2 Class H require for copper-bonded earth rods, and how do you verify compliance?

Accepted Answer

IEC 62561-2 Class H sets a minimum copper coating thickness of 250 µm on the rod's outer surface. Verification uses either the Faraday-cup electrochemical stripping method or a cross-section SEM measurement, both are described in IEC 62561-2 Annex A. We test a sample from every production batch and include the thickness certificate in the dispatch document pack. A rod that does not meet 250 µm Class H cannot be described as IEC 62561-compliant, regardless of the supplier's claim, ask for the test method and measurement record, not just a certificate.

Question 2

How does UL 467 differ from IEC 62561-2, and which standard applies to US and Gulf projects?

Accepted Answer

UL 467 (Grounding and Bonding Equipment) is the North American benchmark. It specifies a minimum copper coating of 10 mils (254 µm) on earth rods, almost identical to IEC 62561-2 Class H in practice. The test methods differ slightly, but rods produced to IEC 62561-2 Class H pass the UL 467 dimensional requirement. For US data centre or oil-and-gas projects importing from India, buyers typically ask for IEC 62561-2 certification and accept it in lieu of a formal UL listing. For GCC projects, IEC 62561-2 is the explicit standard in Saudi SEC and UAE DEWA earthing specifications.

Question 3

What does IS 3043 say about driven rod electrodes versus excavated plate or pipe electrodes?

Accepted Answer

IS 3043 clause 4.4 covers rod electrodes. It specifies that rods must be metallic, driven vertically, with a minimum cross-section sufficient to carry the prospective fault current without overheating, and the top of the rod must be accessible in an inspection chamber. IS 3043 does not set a minimum copper coating for copper-bonded rods, it defers to the material standard. For driven rods specifically, IS 3043 prefers harder ground conditions where plates are impractical. In practice, copper-bonded rods are now the default for driven earthing in India because they combine the driving strength of steel with copper's corrosion resistance.

Question 4

What's the practical difference between a copper-bonded rod and a solid copper rod?

Accepted Answer

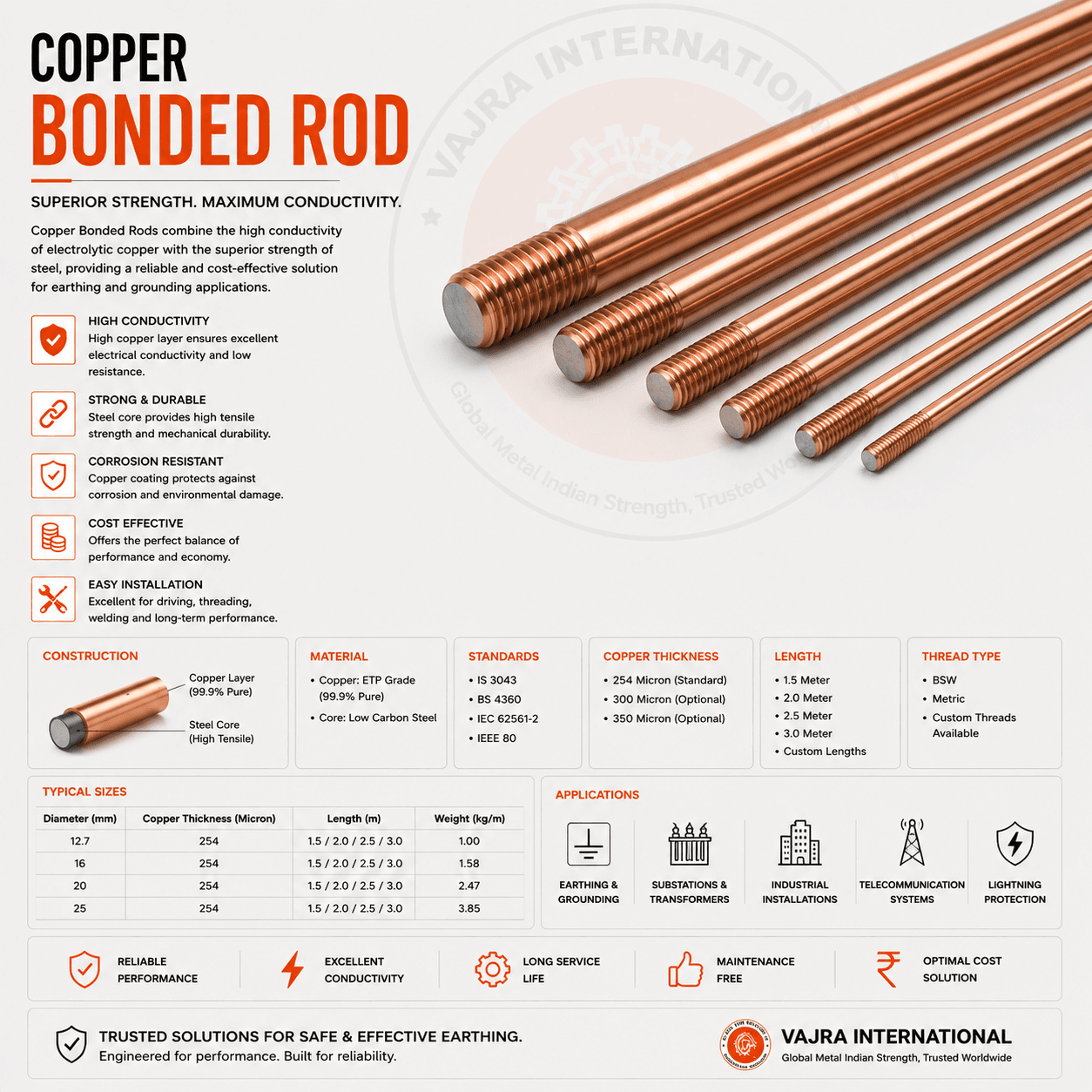

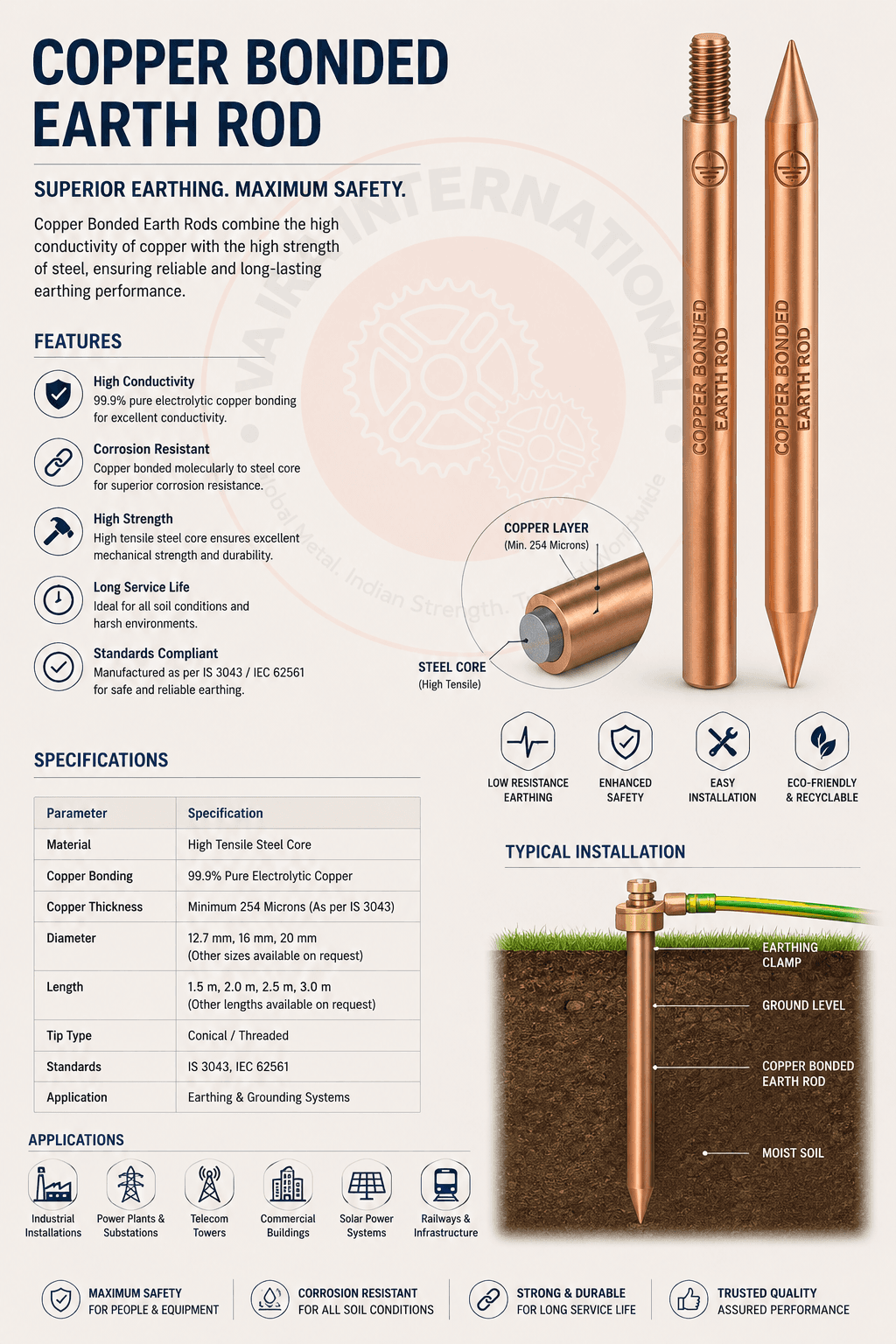

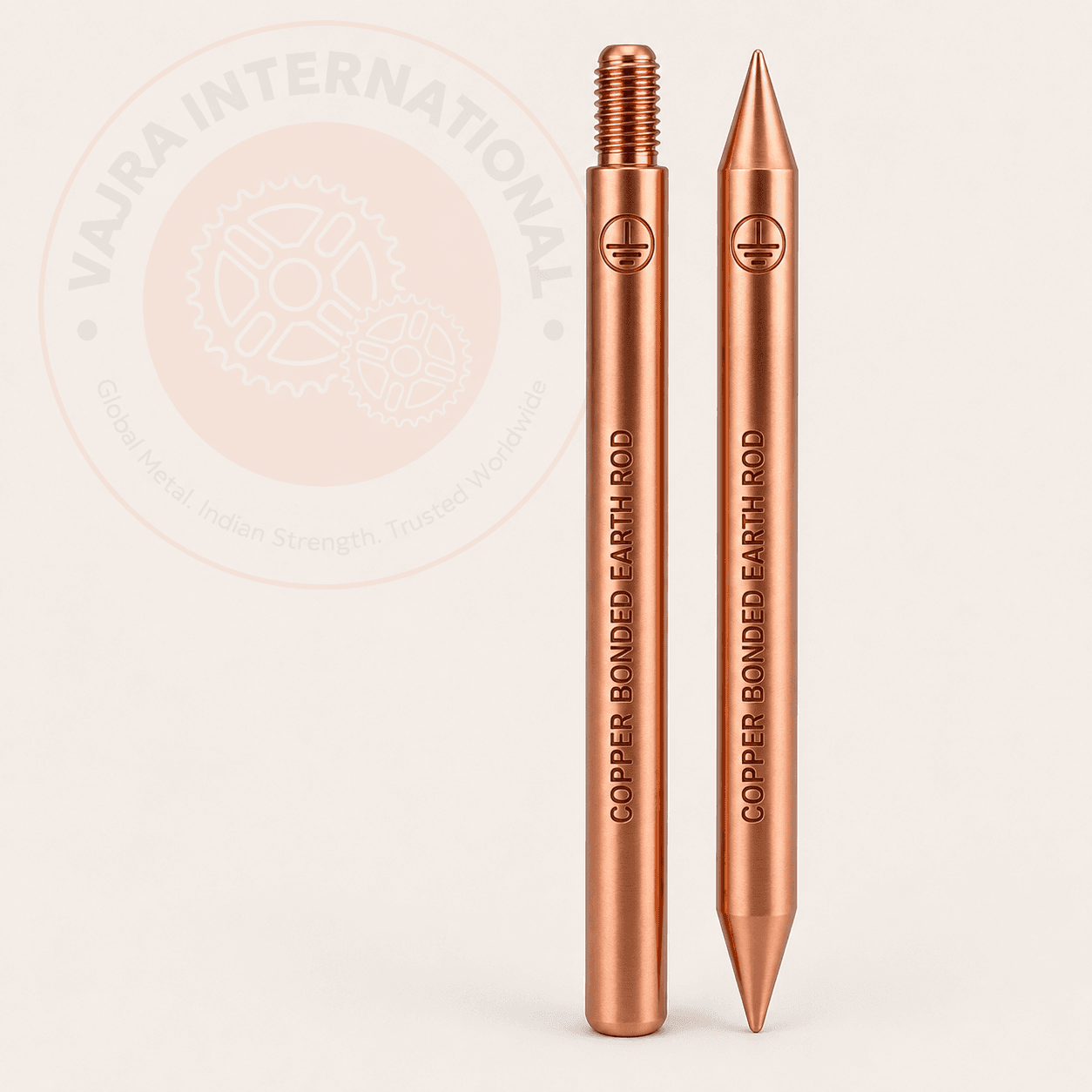

A copper-bonded rod is a high-carbon steel core with 250 µm of pure copper metallurgically bonded around it, it drives without bending and has the surface corrosion resistance of copper. Solid copper rods deform on driving in anything but very soft soil and cost five to eight times more per metre. The copper-bonded rod is the global standard for driven earthing under both IEC 62561-2 and UL 467. Solid copper rods are used in specialist cases, very aggressive soil chemistry or sites where steel content is prohibited.

Question 5

Which diameter and length should I specify for different soil conditions?

Accepted Answer

14.2 mm diameter handles most light-to-medium soil; 17.2 mm is the working choice for harder, rocky or gravelly soil where driving force is higher and the rod needs the extra cross-section to stay straight at depth. Standard lengths are 1.2 m, 1.5 m and 3.0 m, coupled sets reach 4.5 m, 6 m or deeper. Use depth to reduce resistance before adding more rods in parallel. Length is set by the soil resistivity profile from a Wenner four-pin survey; we size from the survey data and system fault current on request.

Question 6

How are rods coupled for driving beyond 3 m, and what driving equipment is needed?

Accepted Answer

Factory-threaded rod ends accept brass or bronze coupling sleeves, the sleeve screws onto the first rod, the next rod screws in, and a hardened driving head caps the top and transmits the hammer blow. A standard 5 kg demolition hammer or a pneumatic breaker works for 14.2 mm rods; 17.2 mm in hard soil needs a pneumatic driver. We ship complete driving kits: couplers, driving head, starting cap and IEC 62561-compliant clamps, so the installer has everything needed on site without improvising.

Question 7

How are rods packaged for export, and what container quantities work for a utility solar project?

Accepted Answer

Rods are steel-strapped in bundles, end-capped, and waterproof-wrapped for sea freight. A 20 ft container holds approximately 5,000 units of 17.2 mm × 1.5 m rod (7,500 m total), enough for the earth grid of a 100 MW solar plant plus spare stock. Mixed loads with copper strip, GEM backfill and IEC 62561 clamps are standard for solar EPC shipments. Export documentation includes the IEC 62561-2 material certificate, ASTM B3 copper purity declaration, certificate of origin, and packing list sorted by diameter and length.

Question 8

Are copper-bonded rods suitable for telecom tower and 5G site earthing?

Accepted Answer

Yes, a triangular or square array of three to four 3 m copper-bonded rods, bonded by a buried 50×6 mm GI or 35 sq mm copper conductor loop, is the standard LPS earth termination for telecom towers and 5G masts. The typical target is less than 10 Ω per IEC 62305 Type A, achievable with three rods in most Indian soil resistivity profiles. Indian tower operators (Indus Towers, ATC India, Brookfield) and African operators (IHS, Helios Towers) order from us in pre-engineered site kits, all rods, couplers, clamps and loop conductor packed per tower, which cuts site assembly time against loose-item procurement.

Question 9

Which Indian cities and sectors are procuring copper-bonded rods at the highest volumes right now?

Accepted Answer

Bangalore stands out, the data centre cluster at Electronic City, Whitefield and Bidadi is driving consistent monthly call-offs of 17.2 mm × 3 m rods for high-density earth grids in basalt rock where plates are not viable. Mumbai follows, with telecom tower densification and commercial tower earthing upgrades. Rajasthan and Gujarat are growing fast because every 100 MW solar plant needs 2,000 to 4,000 rods for the array earth grid, and we hold project stock for several active Rajasthan and Gujarat EPCs. Delhi NCR is steady from substation upgrades and metro extensions. We run monthly deliveries to all four clusters.

Question 10

Which GCC and African projects are buying Indian copper-bonded rods, and what do the specifications ask for?

Accepted Answer

Saudi Aramco, NEOM and SABIC expansion projects specify IEC 62561-2 Class H rods with a SASO-approved third-party certificate. UAE DEWA substation refurbishments specify the same standard with a UAE ESMA self-declaration. South African mining projects (Witwatersrand and Limpopo copper and platinum mines) specify UL 467 or IEC 62561 rods for substation earthing, requiring a SANS 10198 installation compliance letter from the local electrical engineer. We have supplied to all three markets and hold templates for each country's documentation set, reducing the procurement team's paperwork load at project close-out.

Question 11

Are there any environmental or soil restrictions where copper-bonded rods should not be used?

Accepted Answer

Copper-bonded rods are inert and non-leaching, the copper coating does not dissolve into groundwater at measurable levels under normal soil chemistry. They are routinely approved for environmentally sensitive sites, wetlands and groundwater protection zones across India and internationally. The one exception is highly acidic soil (pH below 4), where the steel core can corrode from the inside if a mechanical crack opens the coating, in that case, solid copper or stainless rods are the correct specification. GEM backfill is also environmentally inert and approved by India's Central Pollution Control Board for use near water tables.

Length tolerance	±3 mm on standard lengths
Width tolerance	±1 mm
Thickness tolerance	±0.15 mm (IS 1079)
Straightness	≤ 1 mm per 1 m
Galvanizing coat	85 µm min (ASTM A123)
Squareness	≤ 1 mm per 100 mm
