Ladder Cable Tray
High-strength ladder trays for heavy power-cable runs with maximum ventilation.
What it is

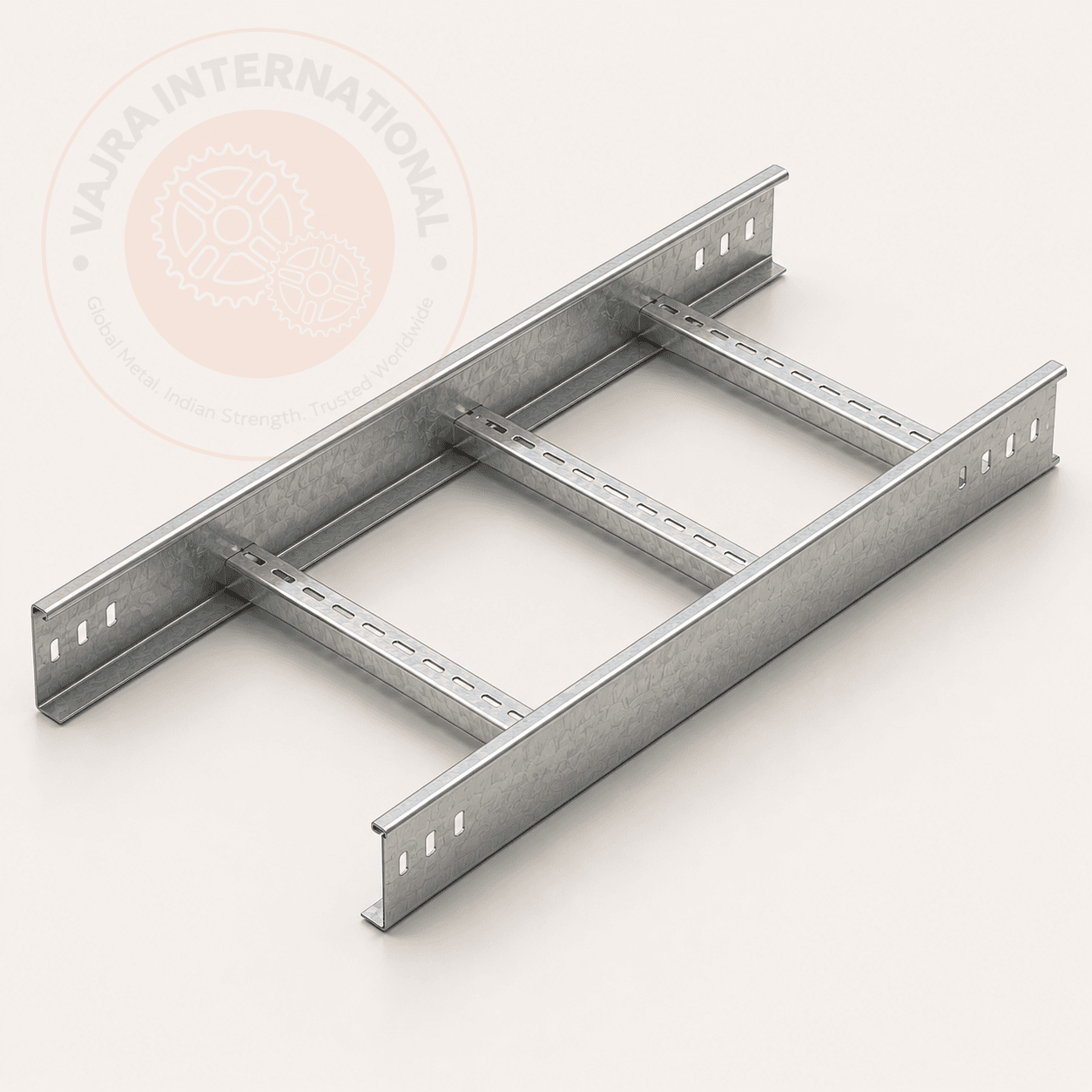

Ladder-type trays carry heavy power cabling over long support spans with open rungs for heat dissipation and easy cable tie-down. Side-rail heights and rung pitch are configured to project load tables.
Applications
Materials
Finishes
Dimensional & Section Details
Engineering drawings for sizing, cross-sections and installation reference. Click any drawing to enlarge.
Buying ladder cable tray — answered
Practical answers for procurement, engineering and EPC teams — covering specification, standards, finish, lead time and export logistics.
Ladder trays are the right call for heavy power cabling where heat dissipation, large bend radii and long support spans matter — the open rungs let warm air rise away from conductors. Perforated trays suit lighter control and instrumentation runs where you want continuous bottom support. For a data-centre busway feed or a substation cable corridor, specify ladder; for a panel-room control loom, perforated is enough.
IEC 61537 is the global benchmark — it covers classification, load-deflection tests, electrical continuity and corrosion class. We engineer and manufacture to IEC 61537, IS 12352, and NEMA VE 1 simultaneously, which lets international EPCs write any of the three into the BOQ without re-sourcing. Our parallel standard certification is what differentiates us in competitive tenders.
Coastal humidity and salt aerosol demand hot-dip galvanizing to ASTM A123 (minimum 85 µm zinc coat) or stainless steel 316L for splash-zone sections. We engineer all our coastal-duty cable trays with HDG as standard and maintain in-house galvanizing capacity to guarantee 85+ µm coating on every shipment. Our accelerated salt-spray testing (ASTM B117, 1,000 hours) ensures the finish survives Middle East and African coastal environments.
Hyperscale and colocation racks load 50–150 kg per metre under the floor when you count power, fibre and copper trunks together. Specify a Class 12 (or higher) tray to IEC 61537 with a 1.5–2.0 m support span and a safety margin of at least 1.5×. Indian data centres in Hyderabad, Mumbai, Chennai and Noida are tendering at these classes today.
Yes. Most projects need either tie-down slots in the rungs or fixed cable-cleat positions for fault-current restraint. We produce rungs with stamped tie-slots on request and weld cleat brackets at drawing-specified pitch — both finish-matched to the parent tray.
Related lines
Perforated Cable Tray
Slotted trays for control, instrumentation and lighter power cabling.
Cable Raceway / Trunking
Closed trunking with covers for clean routing and mechanical protection.
Channel Cable Tray
Compact channel trays for short drops and single-cable runs.
Manufacturing & Surface Treatment
All products are manufactured at Vajra's Howrah facility under ISO 9001:2015 quality management. In-house roll-forming, welding, galvanizing and testing — without sub-contractor dependency — ensures consistent dimensional accuracy and surface quality across export orders.
Precision Roll-Forming
CNC roll-forming lines capable of ±0.1 mm dimensional tolerance on MS, GI, SS, and aluminium sections.
Hot-Dip Galvanizing
In-house HDG plant conforming to ASTM A123 / IS 2629. Average coating: 85–140 µm. Pre-treatment: alkaline degreasing → pickling → fluxing.
Welding & Fabrication
MIG, TIG, SAW welding. Coded welders under ASME IX / IS 2825 qualification. Weld inspection by UT / DPT available.
Surface Treatment
Hot-dip galvanizing · Pre-galvanized GI · Powder coating (Tribo gun, 60–80 µm DFT) · Mill finish · Chromate passivation.
Available Material Grades
Surface Treatment Options
Manufacturing Tolerances
| Length tolerance | ±3 mm on standard lengths |
| Width tolerance | ±1 mm |
| Thickness tolerance | ±0.15 mm (IS 1079) |
| Straightness | ≤ 1 mm per 1 m |
| Galvanizing coat | 85 µm min (ASTM A123) |
| Squareness | ≤ 1 mm per 100 mm |
Global Supply & Export Documentation
Ladder Cable Tray is exported under a documented supply chain — from factory test certification through customs clearance to door delivery. All shipments are packed to sea-freight standards with full export documentation prepared in-house.
Incoterms Available
- FOB Kolkata
- CIF Port of Destination
- CFR
- EXW Howrah Works
- DDP (on request)
Export Documents
- Commercial Invoice & Packing List
- Bill of Lading / Airway Bill
- Certificate of Origin (CoO)
- Inspection Certificate
- Phytosanitary Certificate (where applicable)
- MSDS / Material Safety Data Sheet
- Test Reports & Mill Certificates
Packaging Standards
- Wooden crate — sea-freight grade
- ISPM-15 heat-treated pallets
- Steel-strapped bales for structural sections
- VCI poly wrapping for corrosion protection
- Moisture-absorbing desiccant sachets
Compliance & Standards
Manufactured and tested to:
ISO 9001:2015 quality management system. Third-party inspection available on request (SGS, Bureau Veritas, TÜV).
Lead time: Standard stock items ship within 7–10 working days after order confirmation. Custom fabricated quantities: 15–25 working days. Express production available — contact our export desk.
