Question 1

When should I choose a perforated tray over a ladder tray?

Accepted Answer

Perforated trays are right when the cable route carries smaller cables, control wiring, instrumentation, Cat 6A data, BMS signals, fire-detection loops, where continuous bottom support prevents sagging between rungs. They also suit pharmaceutical cleanrooms, hospital technical floors and commercial Grade A office fit-outs where cleanliness and aesthetics matter alongside function. For heavy LT power cable above 240 mm² or long support spans exceeding 2 m, ladder tray is the better thermal and structural choice.

Question 2

Which sectors are buying perforated cable tray at the highest volumes from Indian manufacturers right now?

Accepted Answer

Four clusters stand out in our current supply pipeline. Commercial real estate (Grade A offices, malls, hospitality) in Mumbai, Hyderabad, Bengaluru and Delhi buys pre-galvanized perforated tray in 100–200 mm widths for BMS and fire-detection routes. Pharmaceutical plants in Hyderabad (Divi's, Aurobindo, Dr Reddy's) and Pune (Cipla, Lupin) specify stainless 304 perforated trays for cleanroom and API manufacturing areas. Metro rail EPCs (L&T, Afcons) use HDG perforated tray for signalling and telecoms runs in tunnel and station environments. Data-centre operators buy wider widths (300–450 mm) in HDG for under-floor structured cabling at their India expansion sites.

Question 3

What should a buyer check when comparing perforated cable tray quotations?

Accepted Answer

Five things separate good supply from low-cost supply. Gauge: is the quoted thickness the base metal or the total with galvanizing? A 1.6 mm base pre-galvanized tray is not the same as a 1.6 mm finished tray. Return flange: does the tray have a doubled edge or a raw cut edge? Raw cut edges damage cable insulation during installation and are not acceptable on international tenders. IEC 61537 load class: is the load rating supported by a type-test report or a self-declaration? Finish consistency: is galvanizing in-house or outsourced? If outsourced, zinc thickness varies by batch. Accessory matching: can the supplier provide bends, tees and couplers in the same material and thickness? Getting the answers to these five before you compare prices prevents a lot of site rework.

Question 4

Why do GCC and European tenders always specify a returned-flange perforated tray?

Accepted Answer

The returned flange doubles the effective edge thickness by folding the steel back on itself, that resists the rolling deformation that occurs under cable load on a plain-cut edge. It also removes the sharp shear burr that cuts cable insulation during the pull-through, which is a common damage mode on long tray runs. Saudi Aramco, ADNOC and IEC 61537 specifications effectively mandate the returned-flange profile as a minimum quality standard; a plain-cut edge tray will be rejected at inspection on most international projects.

Question 5

What standard governs perforated cable trays, and do you hold type-test reports?

Accepted Answer

IEC 61537 is the international standard; IS 12352 is the Indian equivalent. Both cover load classification, deflection limits, electrical continuity (earth path resistance) and corrosion class. We hold IEC 61537 type-test reports for our standard perforated profiles in pre-galvanized and HDG finish, not self-declarations, but actual third-party load-deflection tests. Metro and tunnel projects also need a fire test per IEC 61537-1 with low-halogen evidence, which we provide for the HDG profile on request.

Question 6

Which thickness should I specify for different widths and loads?

Accepted Answer

For a 300 mm wide tray carrying up to 30 kg/m on a 1.5 m span, 1.2 mm pre-galvanized covers indoor dry runs; 1.6 mm for moderate industrial load; 2.0 mm HDG for outdoor or heavy-load duty. At 600 mm wide, start at 1.6 mm for indoor and 2.0 mm HDG for anything outdoors or above 50 kg/m loading. The load-deflection chart (which we share for any profile) sets the exact answer. IEC 61537 limits deflection to L/100 of the span, and that limit governs the thickness selection at a given load and span combination.

Question 7

Are there specific requirements for perforated trays in metro and railway tunnel installations?

Accepted Answer

Yes, metro and tunnel environments impose three requirements that standard industrial trays don't always meet. First, the tray must have electrically continuous joints so the run participates in the signalling-circuit bonding scheme, our HDG couplers with toothed washers achieve this. Second, fire integrity: many metro specs reference IEC 61537 fire class with evidence that the steel does not contribute significantly to fire load, which our HDG profile satisfies. Third, low-halogen cable compatibility: perforated trays with powder-coat finishes can off-gas halogens at elevated temperatures. HDG trays without organic coating are the correct choice for tunnel installations.

Question 8

Can I get colour-coded powder coating for different service zones?

Accepted Answer

Yes. RAL powder coating over an HDG or zinc-primed base is available in any standard colour. Common service-zone mappings we supply to: orange for fire-detection, red for emergency power, blue for structured data, grey for general power, green for safety services. We keep the colour-to-service map in our QA records and match it consistently across the project so incoming deliveries are sortable by site team at the roll cage without opening boxes. Specify the colour code on the BOQ and we lock it in.

Question 9

What's the cost difference between stainless 304 and 316 perforated trays, and when does 316 justify the premium?

Accepted Answer

Stainless 316 costs 25–35 % more than 304 at current LME nickel and molybdenum prices. The molybdenum content in 316 is specifically what resists chloride pitting, so use 316 where chlorides are present: coastal pharma plants, food-processing wash-down environments, offshore platforms and any area with regular sodium hypochlorite or chlorinated-water wash-down. For most inland industrial use, 304 is sufficient and the cost saving matters at project scale. Both perform identically in the dry, clean environments most commercial tenders describe.

Question 10

Which IEC tray class fits a typical hospital or Grade A office building tender?

Accepted Answer

Grade A commercial and hospital projects typically tender for IEC 61537 Class 5–8 perforated trays on a 1.5 m support span, that covers control, lighting, small power and LV data in one standard profile. Hospitals add a requirement for fire-detection tray to carry the fire-alarm system independently of other services, usually in a dedicated tray run with cover. We ship the commercial profile to contractors across India, the GCC and East Africa on standard lead times of 2–3 weeks.

Question 11

How are trays protected for long sea voyages to West Africa or South America?

Accepted Answer

We nest trays in steel-strapped bundles with polyethylene interleaving to protect the finish, load on hardwood skids and shrink-wrap the pallet. For voyages over five weeks to West Africa or South America we add VCI (volatile corrosion inhibitor) paper inside HDG bundles, it creates a protective vapour atmosphere around the zinc that prevents transit white-rust without contact. Every carton is BOQ-coded so the receiving team at site can sort by service zone without opening or reading invoices.

Length tolerance	±3 mm on standard lengths
Width tolerance	±1 mm
Thickness tolerance	±0.15 mm (IS 1079)
Straightness	≤ 1 mm per 1 m
Galvanizing coat	85 µm min (ASTM A123)
Squareness	≤ 1 mm per 100 mm

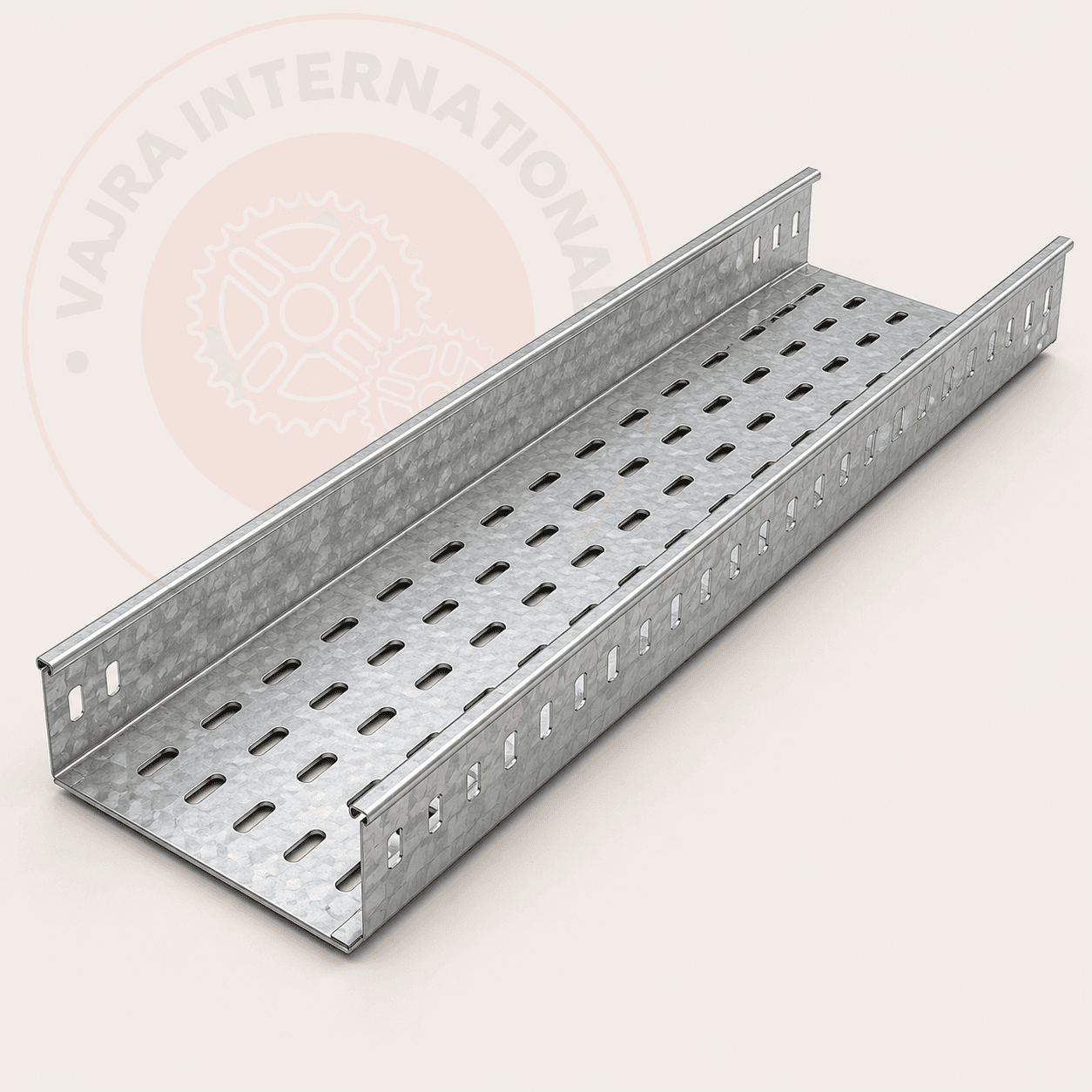

Perforated Cable Tray
