Brass Cable Glands
Single & double-compression glands for armoured and unarmoured cable.
What it is

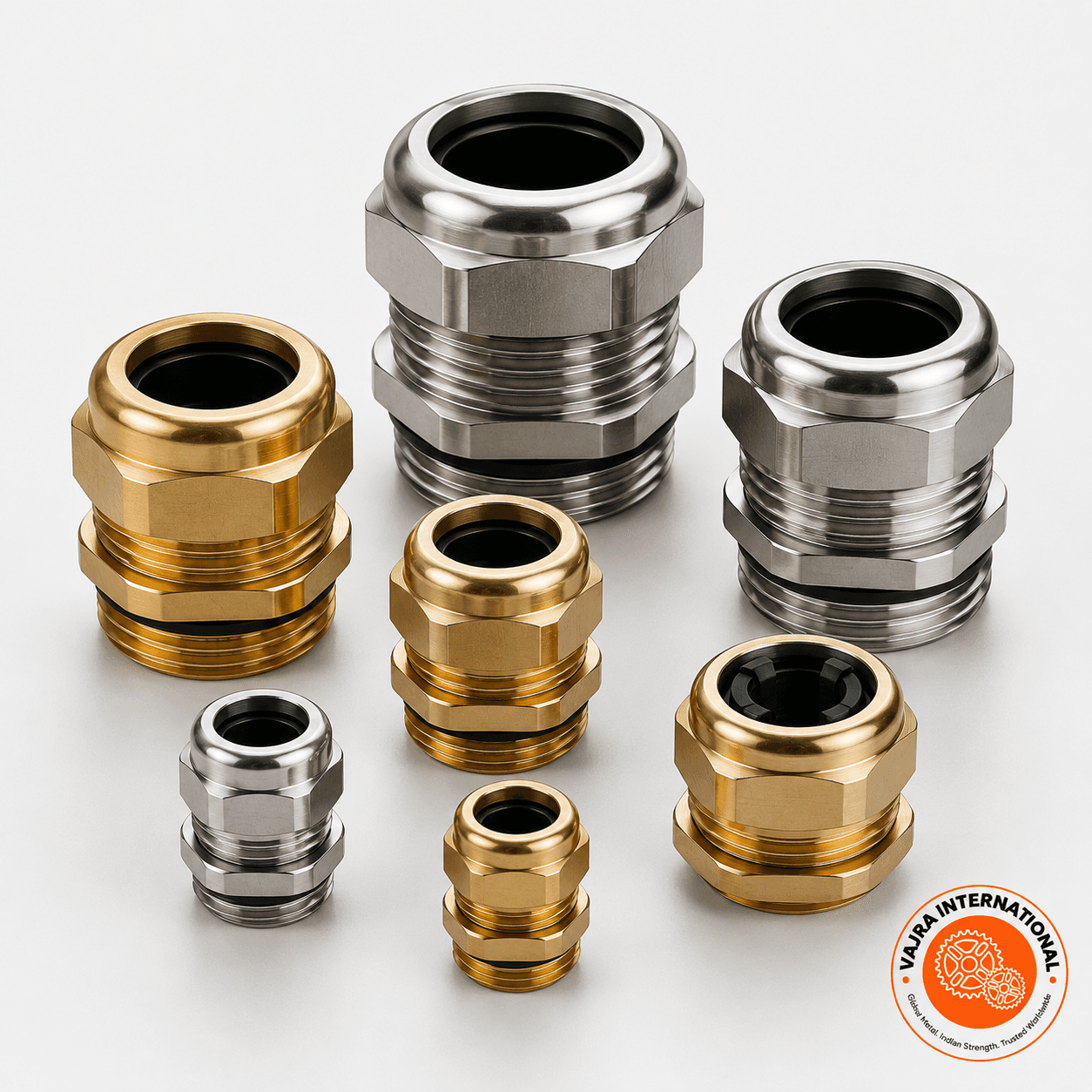

Brass single and double-compression glands with weatherproof and flameproof variants for armoured (SWA) and unarmoured cable entry.
Applications
Materials
Finishes

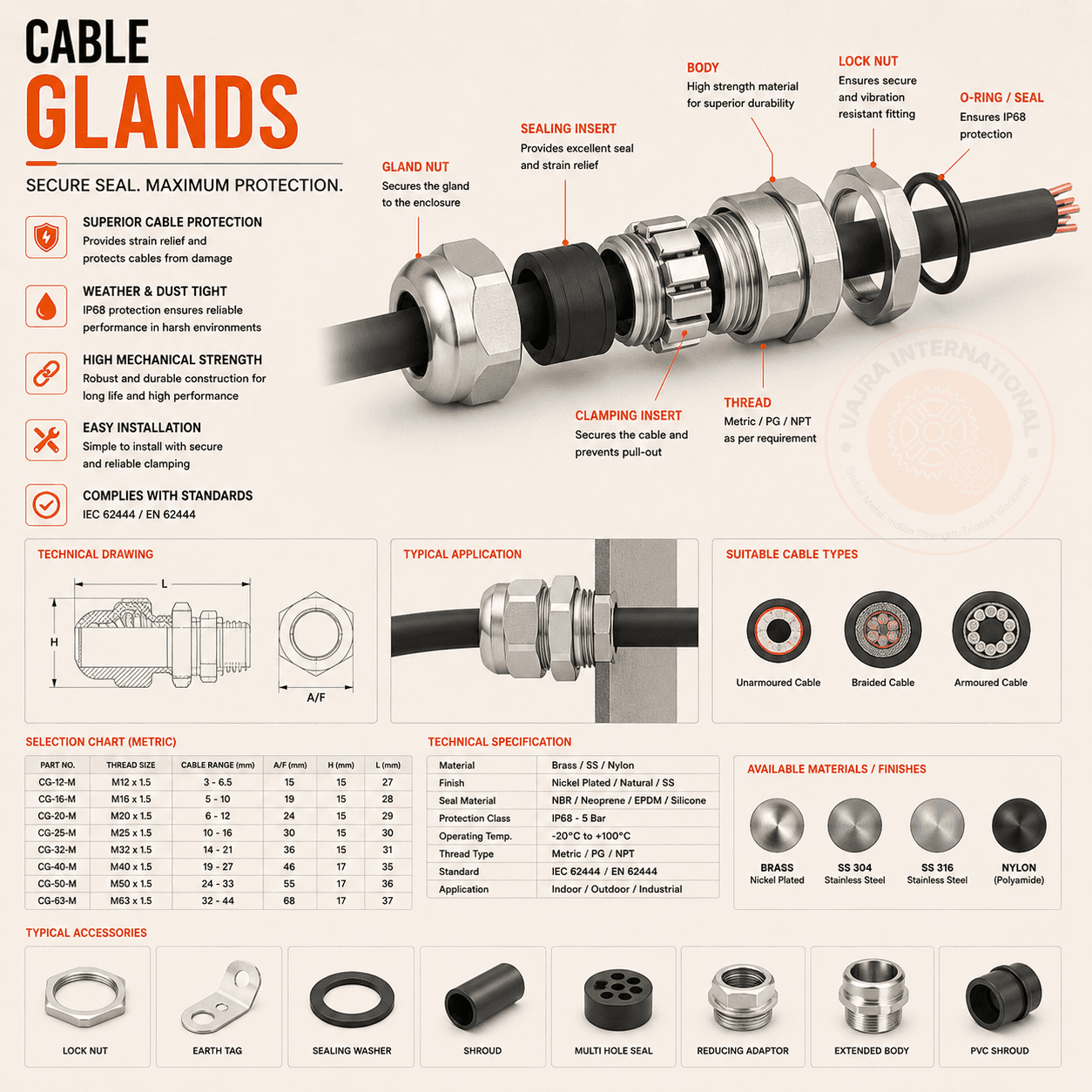

Dimensional & Section Details
Engineering drawings for sizing, cross-sections and installation reference. Click any drawing to enlarge.
Buying brass cable glands — answered
Practical answers for procurement, engineering and EPC teams — covering specification, standards, finish, lead time and export logistics.
A single-compression gland seals the cable outer sheath only — fine for indoor unarmoured cable. A double-compression gland seals the outer sheath AND grips the armour — required for armoured (SWA) cable and for any weatherproof or hazardous-area entry. Procurement teams sometimes specify the wrong type; verify cable construction first.
We supply Ex-rated glands certified to IECEx and ATEX (Ex d, Ex e, Ex tb) for Zone 1/2/21/22 areas through our partnered Ex manufacturers — Vajra brand is for general industrial. For hazardous-area projects, share the area classification and we'll quote the certified range.
Brass machines well to tight thread tolerances, doesn't seize under salt and humidity, and accepts nickel or chrome plating for marine use. Aluminium glands are lighter and cheaper but susceptible to galvanic corrosion. Stainless 316 glands cost 3–4× and are used in pharmaceutical and offshore splash-zone work.
Nickel-plated brass holds up better in marine and chemical environments and stays cosmetically clean. Bare brass develops a patina but performs identically. Most international tenders (GCC, EU) specify nickel-plated; Indian utility tenders accept bare.
The gland's outer-sheath sealing range and inner-armour gripping range must both bracket the cable's actual dimensions. Cables vary by manufacturer, so verify against the cable datasheet, not the conductor cross-section. We share a gland-selection table that maps common cables to gland sizes.
Related lines
Manufacturing & Surface Treatment
All products are manufactured at Vajra's Howrah facility under ISO 9001:2015 quality management. In-house roll-forming, welding, galvanizing and testing — without sub-contractor dependency — ensures consistent dimensional accuracy and surface quality across export orders.
Precision Roll-Forming
CNC roll-forming lines capable of ±0.1 mm dimensional tolerance on MS, GI, SS, and aluminium sections.
Hot-Dip Galvanizing
In-house HDG plant conforming to ASTM A123 / IS 2629. Average coating: 85–140 µm. Pre-treatment: alkaline degreasing → pickling → fluxing.
Welding & Fabrication
MIG, TIG, SAW welding. Coded welders under ASME IX / IS 2825 qualification. Weld inspection by UT / DPT available.
Surface Treatment
Hot-dip galvanizing · Pre-galvanized GI · Powder coating (Tribo gun, 60–80 µm DFT) · Mill finish · Chromate passivation.
Available Material Grades
Surface Treatment Options
Manufacturing Tolerances
| Length tolerance | ±3 mm on standard lengths |
| Width tolerance | ±1 mm |
| Thickness tolerance | ±0.15 mm (IS 1079) |
| Straightness | ≤ 1 mm per 1 m |
| Galvanizing coat | 85 µm min (ASTM A123) |
| Squareness | ≤ 1 mm per 100 mm |
Global Supply & Export Documentation
Brass Cable Glands is exported under a documented supply chain — from factory test certification through customs clearance to door delivery. All shipments are packed to sea-freight standards with full export documentation prepared in-house.
Incoterms Available
- FOB Kolkata
- CIF Port of Destination
- CFR
- EXW Howrah Works
- DDP (on request)
Export Documents
- Commercial Invoice & Packing List
- Bill of Lading / Airway Bill
- Certificate of Origin (CoO)
- Inspection Certificate
- Phytosanitary Certificate (where applicable)
- MSDS / Material Safety Data Sheet
- Test Reports & Mill Certificates
Packaging Standards
- Wooden crate — sea-freight grade
- ISPM-15 heat-treated pallets
- Steel-strapped bales for structural sections
- VCI poly wrapping for corrosion protection
- Moisture-absorbing desiccant sachets
Compliance & Standards
Manufactured and tested to:
ISO 9001:2015 quality management system. Third-party inspection available on request (SGS, Bureau Veritas, TÜV).
Lead time: Standard stock items ship within 7–10 working days after order confirmation. Custom fabricated quantities: 15–25 working days. Express production available — contact our export desk.
Countries importing Lugs & Glands from India
Cable Lugs & Glands is in active demand across these markets. Click a country to see named importers, city-level volumes, and customs shipment intelligence.
GCC infrastructure, energy, and data-centre build-out with established Indian-origin supply lanes.
View marketContainer-load supply for rail, power, and industrial contractors — largest cable tray import market in Asia.
Importers in Manila
View importersPower sector expansion, oil & gas infrastructure, and West Africa distribution hub driving consistent demand.
Importers in Lagos
View importersBS-standard cable management, earthing rods, and precision CNC components for contractors and distributors.
View marketEast Africa's procurement hub — cable glands, earthing, and cable trays for power and data centre projects.
Importers in Nairobi
View importersRapid industrial growth — garment EPZs, power plants, and solar expansion driving cable management imports.
View marketSectors That Specify This Product
This product line is specified by procurement and engineering teams across the following sectors. Each industry page lists the specific product requirements, typical standards, and export documentation relevant to that buyer profile.
Power & Energy
Utilities & IPPs
Construction
EPC & civil contractors
Oil & Gas
Refineries & terminals
Manufacturing
Heavy process industry
Application engineering support: Our technical sales team provides product selection, load calculation references, and specification assistance for EPC, PMC, and procurement teams. Available for onsite consultation in major project cities.
Download Technical Documentation
Technical Datasheet
PDF · Engineering specifications · Export-ready
Complete engineering datasheet for Brass Cable Glands — dimensional data, material grades, tolerances, applicable standards, and export compliance information.
Free · No registration required · Lugs & Glands datasheet
Request a quote for brass cable glands.
Send drawings, a BOQ, or a simple description. You'll get a structured quotation covering specification, finish, lead time and Incoterms — from the manufacturer, not a middleman.
- MTC · COO · inspection reports
- ±0.01 mm precision · in-house QA
- FOB · CIF · CFR to all major ports
