Copper & Aluminium Lugs
Crimp and solder terminations, tinned for corrosion resistance.
What it is
Heavy-duty crimp and solder lugs in electrolytic copper and aluminium, tinned for corrosion resistance, sized across the conductor range.
Applications
Materials
Finishes

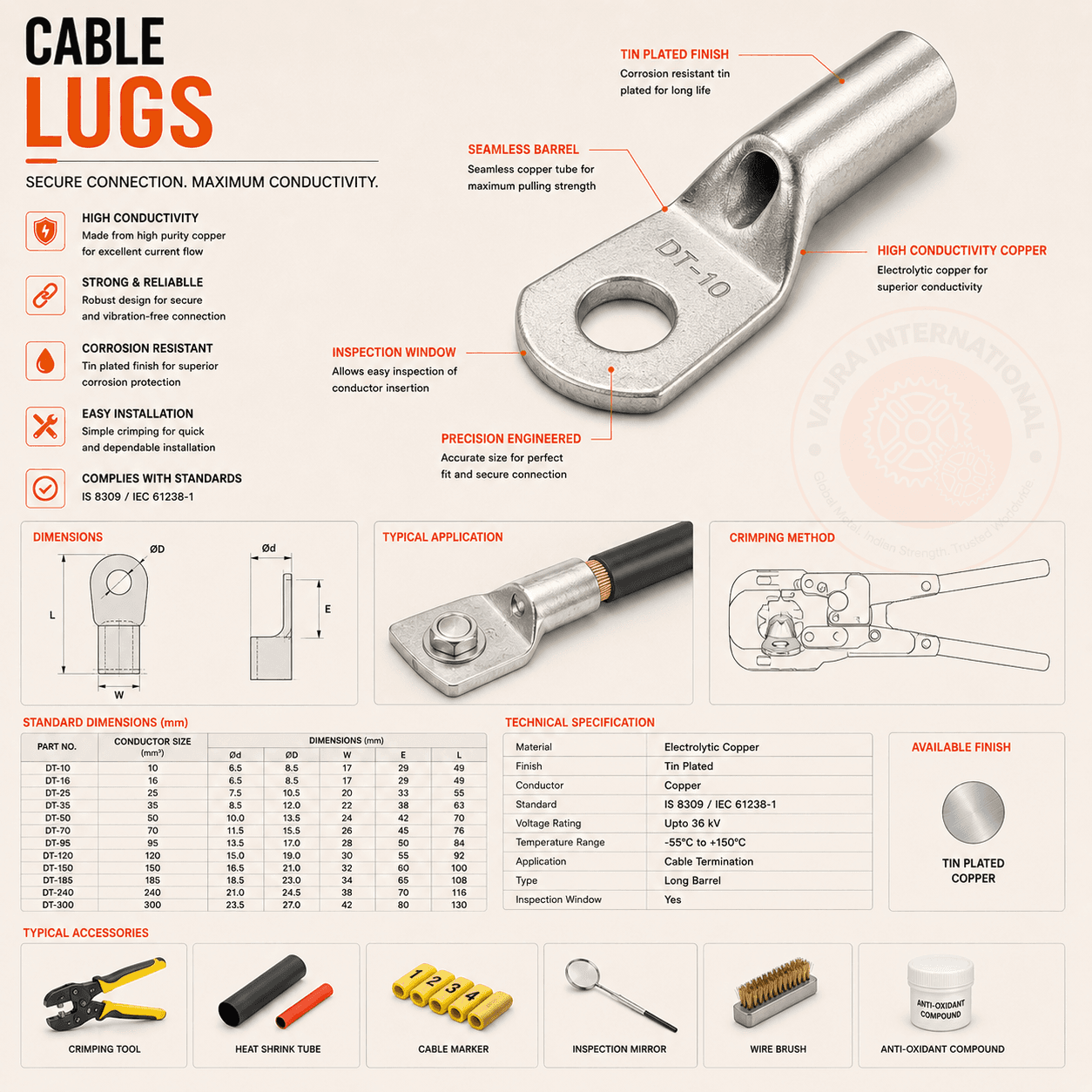

Dimensional & Section Details
Engineering drawings for sizing, cross-sections and installation reference. Click any drawing to enlarge.
Buying copper & aluminium lugs — answered
Practical answers for procurement, engineering and EPC teams — covering specification, standards, finish, lead time and export logistics.
Copper lugs handle higher current density, last longer in panels, and accept tinning for corrosion resistance. Aluminium lugs are lighter, cheaper, and necessary when the cable conductor is itself aluminium — never mix copper lug with aluminium conductor (or vice versa) without a bimetallic adapter.
Modern practice favours crimping with calibrated dies — a properly crimped joint is gas-tight, low-resistance, and verifiable by pull-test. Soldering is now reserved for instrumentation and special joints where vibration and reflow are not a concern. We supply both crimp and solder lugs but recommend crimp for power.
Use a hexagonal-die hydraulic crimping tool sized for the lug (the lug supplier specifies the die number). Strip the conductor cleanly, insert to the back-stop, and crimp two times along the barrel. Pull-test a sample joint. We share the crimping chart for every lug we ship.
Yes — tinning prevents copper oxidation at the bolt interface, which is the slow killer of panel joints in humid coastal or chemical environments. The cost premium is 8–12 %; the life extension is 2–3×. For data centres, refineries and marine projects, tinned is the default.
IS 8309 (compression-type) and IS 12943 (heavy-duty) in India; DIN 46235, BS 4579, IEC 61238 internationally. Our lugs are produced to IS 8309/12943 with material test certificates that align with the DIN and IEC equivalents — accepted by most international EPCs.
Related lines
Manufacturing & Surface Treatment
All products are manufactured at Vajra's Howrah facility under ISO 9001:2015 quality management. In-house roll-forming, welding, galvanizing and testing — without sub-contractor dependency — ensures consistent dimensional accuracy and surface quality across export orders.
Precision Roll-Forming
CNC roll-forming lines capable of ±0.1 mm dimensional tolerance on MS, GI, SS, and aluminium sections.
Hot-Dip Galvanizing
In-house HDG plant conforming to ASTM A123 / IS 2629. Average coating: 85–140 µm. Pre-treatment: alkaline degreasing → pickling → fluxing.
Welding & Fabrication
MIG, TIG, SAW welding. Coded welders under ASME IX / IS 2825 qualification. Weld inspection by UT / DPT available.
Surface Treatment
Hot-dip galvanizing · Pre-galvanized GI · Powder coating (Tribo gun, 60–80 µm DFT) · Mill finish · Chromate passivation.
Available Material Grades
Surface Treatment Options
Manufacturing Tolerances
| Length tolerance | ±3 mm on standard lengths |
| Width tolerance | ±1 mm |
| Thickness tolerance | ±0.15 mm (IS 1079) |
| Straightness | ≤ 1 mm per 1 m |
| Galvanizing coat | 85 µm min (ASTM A123) |
| Squareness | ≤ 1 mm per 100 mm |
Global Supply & Export Documentation
Copper & Aluminium Lugs is exported under a documented supply chain — from factory test certification through customs clearance to door delivery. All shipments are packed to sea-freight standards with full export documentation prepared in-house.
Incoterms Available
- FOB Kolkata
- CIF Port of Destination
- CFR
- EXW Howrah Works
- DDP (on request)
Export Documents
- Commercial Invoice & Packing List
- Bill of Lading / Airway Bill
- Certificate of Origin (CoO)
- Inspection Certificate
- Phytosanitary Certificate (where applicable)
- MSDS / Material Safety Data Sheet
- Test Reports & Mill Certificates
Packaging Standards
- Wooden crate — sea-freight grade
- ISPM-15 heat-treated pallets
- Steel-strapped bales for structural sections
- VCI poly wrapping for corrosion protection
- Moisture-absorbing desiccant sachets
Compliance & Standards
Manufactured and tested to:
ISO 9001:2015 quality management system. Third-party inspection available on request (SGS, Bureau Veritas, TÜV).
Lead time: Standard stock items ship within 7–10 working days after order confirmation. Custom fabricated quantities: 15–25 working days. Express production available — contact our export desk.
