Question 1

What does 'electroforged' mean, and how is it different from press-locked?

Accepted Answer

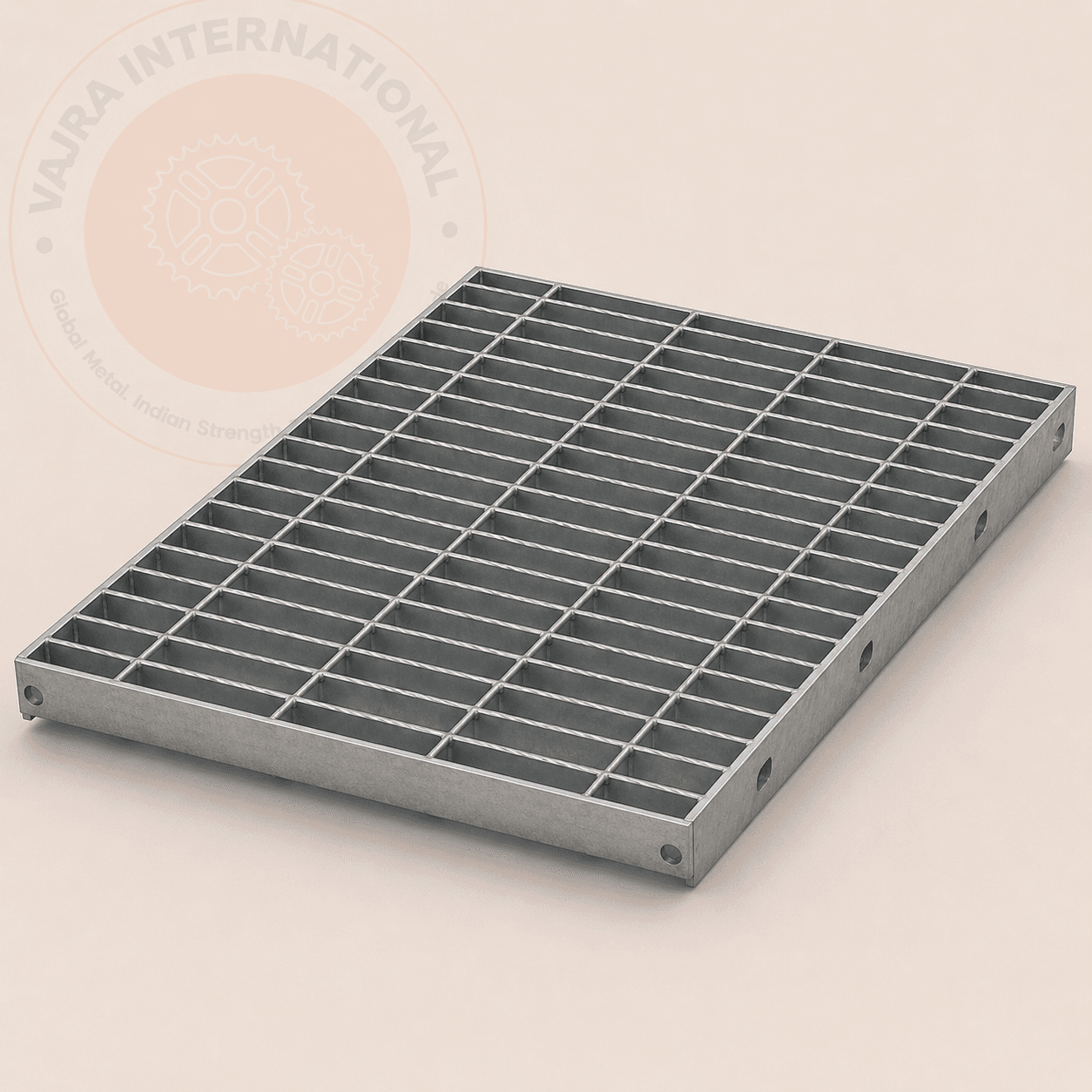

Electroforged gratings fuse the cross-rod into the bearing bar with a resistance-weld pulse — the bars become a single rigid unit. Press-locked gratings hold the cross-rod in a notched bearing bar by friction (sometimes with adhesive). Electroforged is stronger, more durable, and the international default for industrial platforms.

Question 2

Which IS or BS standard should the grating meet?

Accepted Answer

IS 2713 in India, BS 4592 in the UK, NAAMM ANSI-MBG 531 in the US. The standards specify bar dimensions, weld quality, load testing and tolerance. Our gratings are produced to IS 2713 with bar specifications interchangeable with BS 4592 — accepted by most international EPCs.

Question 3

How is bar pitch chosen — appearance or load?

Accepted Answer

Bar pitch (30, 40, 60 mm) trades off open area against load capacity. Closer pitch (30 mm) means more bearing bars per metre — higher load, but heavier and harder to clean. Wider pitch (60 mm) has more open area for spilled fluids and easier cleaning. Refineries usually choose 40 mm as a balance.

Question 4

What is 'serrated' vs 'plain' top, and when does it matter?

Accepted Answer

Serrated bearing bars have a saw-tooth top edge for slip resistance — required on stair treads, walkways above oil-and-grease zones, and any wet-process platform. Plain top is fine for indoor dry platforms and trench covers. Serrated costs about 8–12 % more.

Question 5

Is hot-dip galvanizing always necessary?

Accepted Answer

Almost always — the welded grating has many small crevices that corrode rapidly without zinc coating. HDG to IS 4759 / ASTM A123 with 75–85 µm zinc is the working standard. Self-colour (un-coated) panels are used only for indoor, short-life, painted-over applications.

Question 6

What load class fits a refinery walkway?

Accepted Answer

Refinery walkways typically need a 5 kN/m² uniform load and a 1.5 kN concentrated load per IS 2713 Class C. That maps to 25×3 mm or 32×3 mm bearing bars at 1.0–1.2 m support span. We share the load-deflection chart on request.

Question 7

Are stair treads supplied with carrier plates and nosings?

Accepted Answer

Yes — stair treads ship with welded end carrier plates (drilled to the stringer pattern) and an anti-slip nosing (serrated checker plate or fiberglass). One-piece supply prevents site fit-up errors that delay structural sign-off.

Question 8

How are gratings packed for export to West Africa or South America?

Accepted Answer

Panels are stacked face-to-face with hardwood spacers, banded into bundles, and crate-loaded for sea freight. For long voyages (5–8 weeks) to West Africa or South America we add VCI paper inside the bundle to prevent transit white-rust on the HDG.

Question 9

Which Indian industries are tendering for gratings most heavily right now?

Accepted Answer

We supply electroforged gratings to four main segments: refinery and petrochem expansions (Reliance, IOCL, BPCL, Gujarat and Andhra sites), specialty-chemical plants (Aarti, Deepak Nitrite, PI Industries), power generation (NTPC FGD retrofits), and solar O&M platforms. We cut site-specific openings and assemble custom panel units in the factory, which speeds up EPC schedules. Export to GCC, East Africa and Vietnam is growing.

Question 10

Are bespoke cut-outs (for pipes, columns) supplied factory-finished?

Accepted Answer

Yes — share the layout DXF and we cut, bind the edge with banding bars, weld and galvanize as a complete sub-assembly. Site cutting of HDG grating destroys the corrosion protection, so factory cut-outs are the better value proposition once the project hits 200+ m² of panels.

Length tolerance	±3 mm on standard lengths
Width tolerance	±1 mm
Thickness tolerance	±0.15 mm (IS 1079)
Straightness	≤ 1 mm per 1 m
Galvanizing coat	85 µm min (ASTM A123)
Squareness	≤ 1 mm per 100 mm
